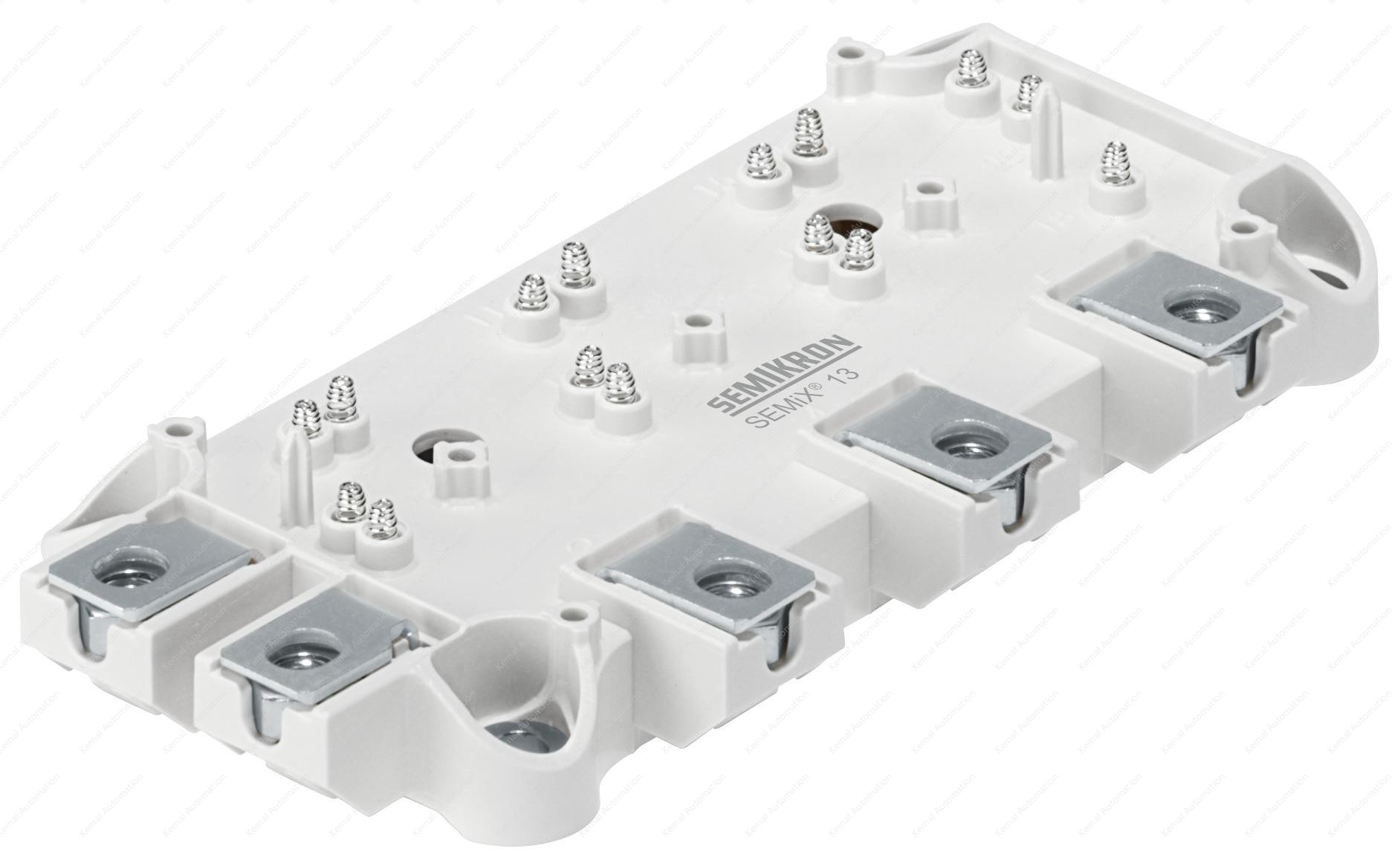

SEMiX341D16s
Subscribe to get pricesModel: SEMiX341D16s
Order No: 27890830
SKU: 1740965661149214765
Condition: New Sealed Under Guarantee
Size: 137.00 mm，71.00 mm，17.00 mm
Weight: 0.00kg
Product Selection Engineer：Huankanheng
Brief Introduction
SEMiX341D16s
Product specificationsCharacteristicValueCurrent (A)348 ADimensions (LLxBBxHH) mm138x71x17FeaturesTerminal height 17 mmChips soldered directly to isolated substrateUL recognised file no. E63532HousingSEMiX 13Part Number27890830Product LineSEMiXProduct StatusIn productionProduct TypeSEMiX341D16sSurge Current (A)2000 ASwitchesRectifierTechnologyBridgeTypical ApplicationsInput Bridge Rectifier for AC/DC motor controlPower supplyVoltage (V)1600 V
Description
Characteristic | Value |
|---|---|
| Current (A) | 348 A |
| Dimensions (LLxBBxHH) mm | 138x71x17 |
| Features |
|
| Housing | SEMiX 13 |
| Part Number | 27890830 |
| Product Line | SEMiX |
| Product Status | In production |
| Product Type | SEMiX341D16s |
| Surge Current (A) | 2000 A |
| Switches | Rectifier |
| Technology | Bridge |
| Typical Applications |
|
| Voltage (V) | 1600 V |
